SSiC ZrO2 Spiral Bushing Pump Advanced Structural Ceramics In Aerospace Propulsion

Brand Name : CSQ

Model Number : Customized

Place of Origin : China

MOQ : 20 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 pcs in 40-50 days

Delivery Time : 40-50 work days

Packaging Details : Foam+cartom box

Name : SSiC or ZrO2 Spiral Bushing

Category : Advanced Structural Ceramic

Material : Silicon carbide or zirconia

Size : Customized, according to the drawings

Use : Industry Pump

Pacage : Foam+cartom box

Contact Now

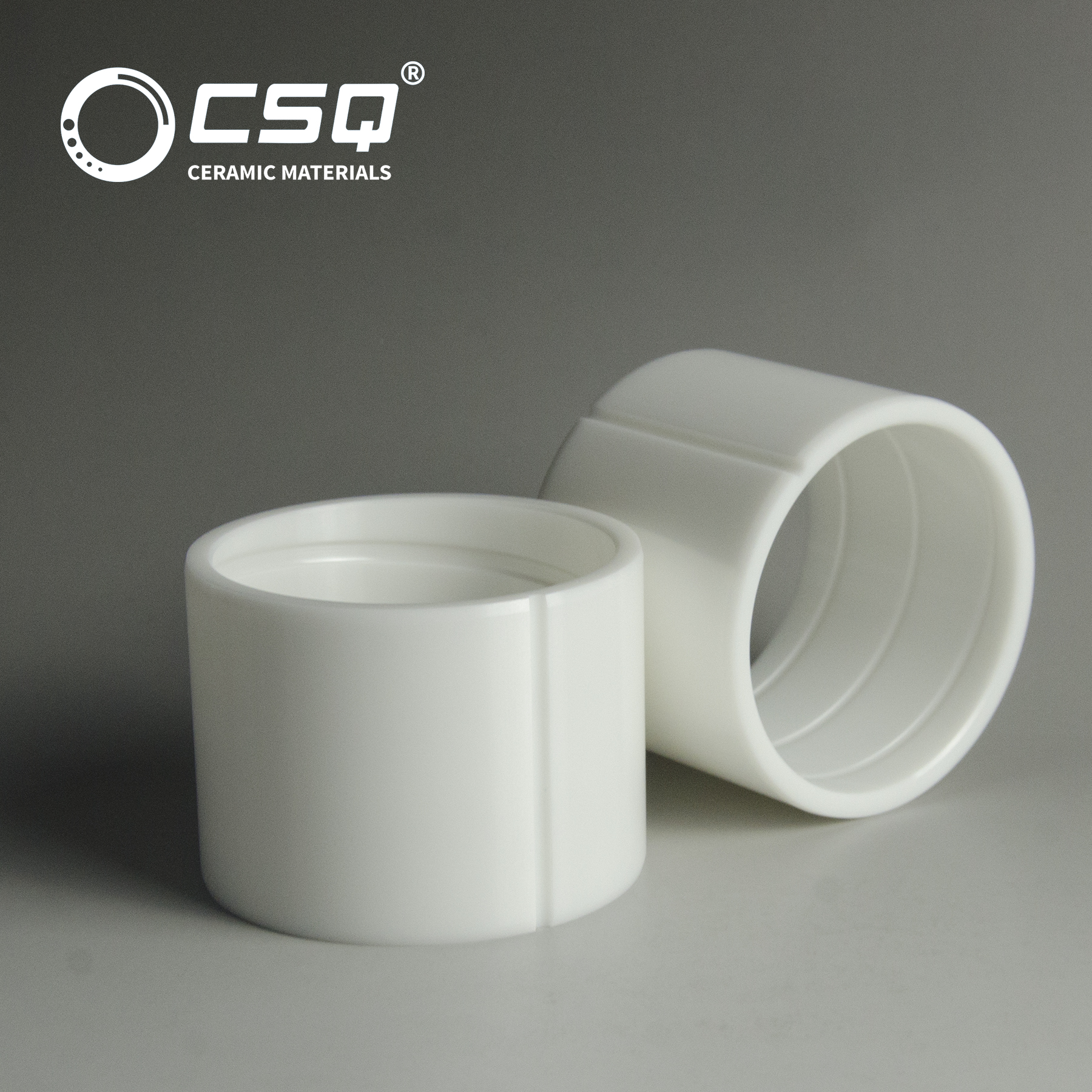

SSiC or ZrO2 Spiral Bushing For Pumps With Customized Size

Our company SSiC or ZrO2 spiral bushings for European pump companies, like Witte Maag for many years. We have recipe, design and production advantages and abundant manufacturing experiences.

Zirconia and Silicon carbide material have resistance to strong acid, strong alkali, salt and gas of deleterious, long life, high hardness and wear resistance.Pumps with the ceramic spiral bushings can face more special working condition and work more time.

►Key properties of pressureless sintered silicon carbide

♦ Max Temperature up to 1650℃

♦ Low density:3.15-3.18 g/cm³

♦ High strength

♦ Low thermal expansion : 4.0 (10^-6/℃)

♦ High thermal conductivity:120 W/m°K

♦ High hardness:2800 HV5

♦ High elastic modulus: 410GPa

♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

►Key properties of zirconia

♦ Max Temperature up to 380℃

♦ High density: 6.09 g/cm³

♦ Low thermal conductivity

♦ Chemical stability, resistance to acid and alkali corrosion

♦ High fracture toughness KIC:8-11 MPa-m^1/2

♦ Good electric insulation

♦ Better bearing capacity

♦ Wear resistance

♦ High hardness : 1300 HV5

SSiC ZrO2 Spiral Bushing Pump Advanced Structural Ceramics In Aerospace Propulsion
